Columbia Generating Station

Columbia Generating Station is the northwest's only commercial nuclear energy facility and is the third largest electricity generator in Washington state, behind Grand Coulee and Chief Joseph dams.

Carbon-free



The electricity produced at Columbia is carbon-free. It's 1,207 gross megawatts can power a city the size of Seattle, and is equivalent to about 10 percent of the electricity generated in Washington and 4 percent of all electricity in the Pacific Northwest.

All of Columbia's output is provided to the Bonneville Power Administration at the cost of production under a formal net billing agreement in which BPA pays the costs of maintaining and operating the facility.

Available 24/7



Columbia is a reliable, baseload, or full-time, energy source. Operation is not dependent on weather conditions.

Refueling occurs every other year and is scheduled when springtime water conditions in the Columbia River Basin are typically high, allowing the federal hydropower dams to produce ample power.​

Integrates with renewables

Columbia operates at 100% power, 24 hours a day, 7 days a week, but has the ability to load follow, or reduce power, when requested by Bonneville Power Administration for grid stability, hydroelectric system management, periods of high wind or economic considerations.

During hot and cold months, when the wind is typically not blowing, BPA may also request a "no touch" order because of the increased demand for electricity or availability of other resources.

Powering communities

Columbia began providing power to the region in 1984. Since then it has provided billions of dollars worth of electricity while emitting virtually no greenhouse gases or carbon emissions in to the environment.

Vital to a clean energy future

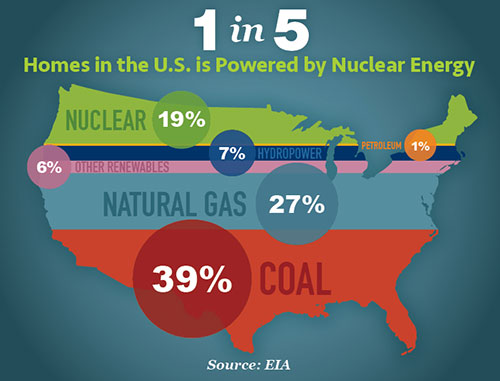

Nearly 20 percent of our nation’s electricity comes from the 96 operating nuclear facilities throughout the United States.

The nationwide push for carbon-free electricity and federal and private investment in the development of small modular reactors have resulted in further consideration of nuclear power as a generation resource.




C-Bullet.jpg Quick Facts


Type:
General Electric boiling water reactor

Generation:
1,207 megawatts (gross)

Location:
10 miles north of Richland, Wash.

Site Size:
~ 1,089 acres



Projected Levelized
Cost of Power
(2014-2043):

4.7 - 5.2 cents/kWh

Comparison Costs*:
Natural Gas: 6 - 14 cents/kWh
Wind: 7 - 10 cents/kWh
Solar: 11 - 42 cents/kWh

*Levelized costs according to the Energy Information Administration. Levelized cost represents the per kilowatt-hour cost (in real dollars) of building and operating a generating plant over an assumed financial life and duty cycle. Key inputs to calculating levelized costs include overnight capital costs, fuel costs, fixed and variable operations and maintenance costs, financing costs and an assumed utilization rate for each plant type.



C-History.jpg History



Construction Permit Issued:
March 1973

NRC Issued Operating License:
December 1983

First Electricity Produced:
May 1984

Commercial Operation:
December 1984

First Refueling Completed:
April 1986


Operating License Expiration:
December 2043
